Screech Owl 1500 Chassis

$399.95

The Screech Owl 1500 Chassis system is an affordable, light weight and modular bolt action rifle chassis currently available for the Howa 1500 Short Action. This Howa 1500 chassis is an excellent platform for building compact truck guns, portable hunting rifles or precision rifles, and long-range capable bolt action pistols.

  • Do you intend do build a rifle or pistol on your chassis? Please note that any firearm with a barrel less than 16" must be built as a pistol unless it is registered as a short barreled rifle.

    Choose either our "Elf Owl Telescoping Stock", or one of our stock adapters. Stock adapters allow you to install various aftermarket stocks on your chassis. The "AR-15 Buffer Tube Adapter allows you to install any stock that uses an AR-15 buffer tube, while the "1913 Picatinny Adapter allows you to mount stocks that use 1913 Pic rail to attach to your rifle.

    • $

    Pistol brace adapters provide different options for mounting pistol braces to your chassis. You can buy the brace yourself, or for certain braces you can buy it from us! A pistol brace adapter and brace are not required for the chassis to function, but they will make it easier to shoot. The "AR-15 Buffer Tube Adapter allows you to install any pistol brace that uses a mil-spec AR-15 buffer tube, while the "1913 Picatinny Adapter allows you to mount braces that use 1913 Pic rail to attach to your pistol. Our "Telescoping Tailhook MOD 1 Adapter" is designed to work with the Tailhook MOD 1 pistol brace and is not compatible with any other brace type. Also, if you want to buy just the chassis for now, and then decide what brace you want later, just choose the "Base Configuration", the adapters will also be available to buy standalone.

    • $
    • $
    • $
    • $
    • $

    Please enter the H-Series Cerakote color name or part number from the Cerakote webiste

    Please enter the H-Series Cerakote color name or part number from the Cerakote webiste

    Please enter the H-Series Cerakote color name or part number from the Cerakote webiste

SKU: SCH1500CH Categories: , , Tag:

Description

Screech Owl 1500 Chassis Core:

  • Compatible with actions that use the Howa 1500 Short Action footprint
  • Flared mag well designed to accept Magpul PMAG AICS Short Action magazines (Other magazines may or may not seat properly)
  • Ambidextrous mag release
  • Accepts any AR-15 pistol grip without an integrated dovetail (Not included)
  • Large trigger guard for gloved operation
  • Machined from a single block of billet aluminum
  • Modular stock and brace adapter system that provides simple single bolt interchangeability of different stock and pistol braces.
  • Comes coated standard in Carbon Gray Cerakote Elite
  • Alternate select Cerakote colors available for a $75 up-charge (Custom colors available for $125 up-charge)
  • Weighs approximately 1.8lbs with 7.5″ rail and rear cover block installed

Handguard Features:

  • M-Lok compatible
  • Billet Aluminum construction
  • Dual integrated Q.D. sling sockets
  • Includes accommodation for night vision hood installation (NV Hood to be released soon)
  • Coated in Carbon Gray Cerakote Elite

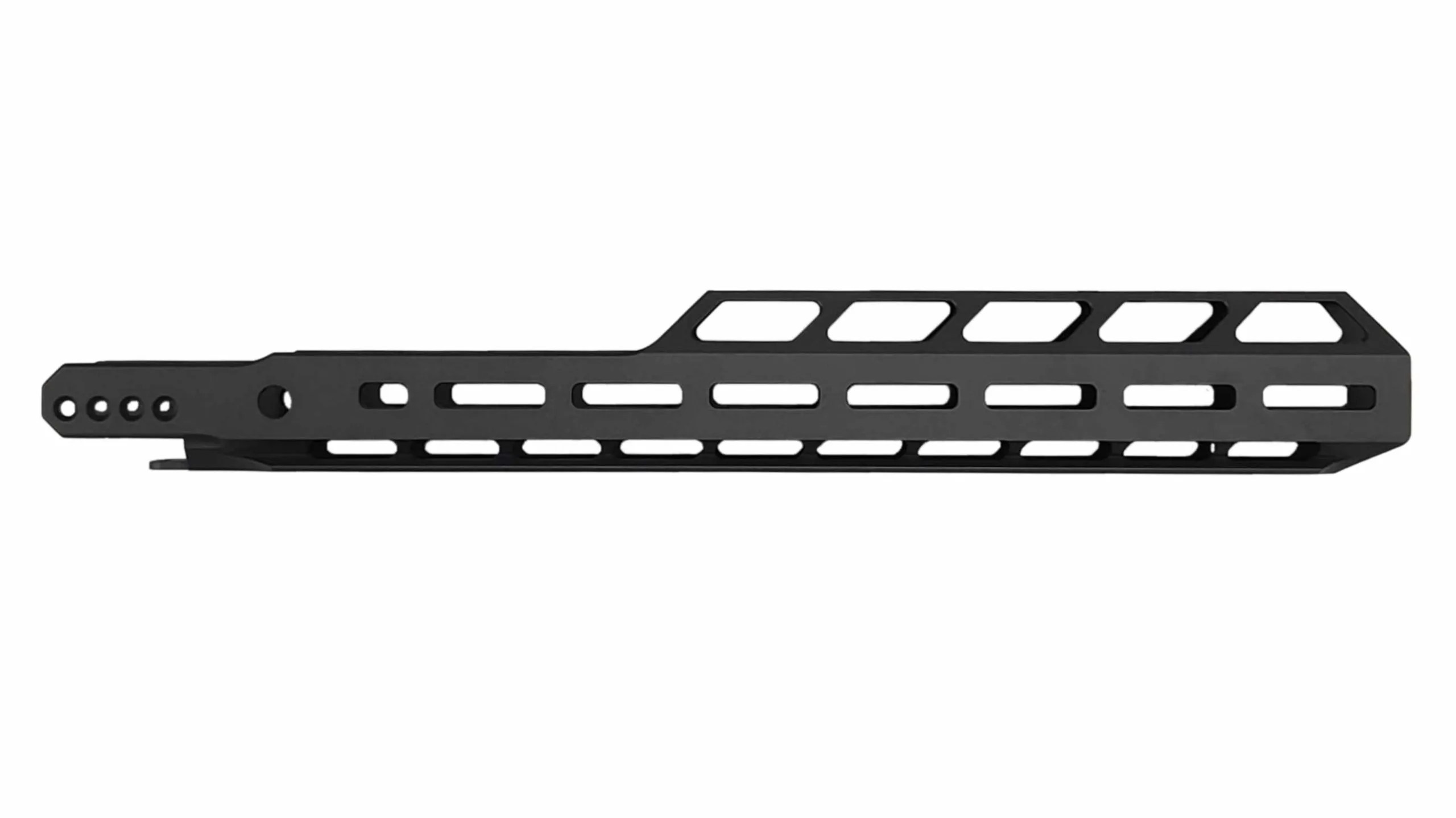

  • Four length options available 5, 7.5, 10.5, or 14″
  • Minimum barrel length (when measured from bolt face to muzzle) for each handguard on the Screech Owl 1500 Chassis is 1.75″ longer then the handguard. This length will allow the full muzzle threads to clear the handguard with a little room to spare. For example a 10.5″ Handguard is compatible with a minimum barrel length of 12.25″. These requirements can vary by chassis model.

Weight Specifications:

There are so many possible configurations that we list weight by component and let you add them up for your specific build.

Base Chassis Wight (Includes Chassis and Necessary Hardware):

  • Base Chassis with hardware (does not include pistol grip) 1.06lbs

Handguard Weights:

  • 5.5″ Handguard 0.28lbs
  • 7.5″ Handguard 0.38lbs
  • 10.5″ Handguard 0.50lbs
  • 14″ Handguard 0.64lbs

Brace Adapter and Stock Additional Weight:

  • Base Configuration Rear Cover Block 0.10lbs
  • 1913 Pistol Brace Adapter 0.15lbs
  • AR-15 Stock/Brace Adapter 0.60lbs
  • Telescoping Tailhook MOD1 Adapter (w/adj cheek piece) (No Brace) 1.20lbs
  • Telescoping Stock 1.49lbs

Brace Additional Weights:

  • SB Tactical FS1913 adds 0.63lbs
  • Tailhook MOD1 adds 0.30lbs
  • Tailhook MOD1C adds 0.2lbs

Stock/Brace Options:

Telescoping Stock ($249.99)

  • Cerakote Elite coated rods and locking mechanism
  • 3 positions for LOP
  • Stock can be quickly pulled to any position
  • Aluminum cheek weld
  • 1/2″ of unrestricted cheek weld height adjustment travel
  • Rubber butt-pad
  • Ambidextrous QD sockets
  • All aluminum coated in Carbon Gray Cerakote Elite
  • Single bolt installation of stock

Telescoping Tailhook MOD 1 Adapter 2.0 ($149.99) (Adapter Only)

  • Designed for use with the Tailhook MOD-1 and MOD-1c pistol braces
  • Fixed cheek piece standard
  • Adjustable cheek piece available for $39.95
  • All parts standard coated in Carbon Gray Cerakote
  • 3 brace positions 11″, 12″ and 13″
  • Brace adapter can be quickly pulled to any position
  • Single bolt installation of adapter

AR-15 Buffer Tube Adapter ($119.99)

  • Compatible with AR-15 style stocks and braces that use the mill-spec carbine buffer tube for installation
  • Ambidextrous Q.D. sockets for use with slings
  • Billet aluminum construction
  • Standard coated in Carbon Gray Cerakote
  • Single bolt installation of adapter

1913 Pic Rail Adapter ($39.99)

  • Allows for use of stock and brace systems that utilize vertical 1913 Pic rail for installation
  • Aerospace grade aluminum construction
  • Standard coated in Carbon Gray Cerakote
  • Includes dual Q.D. Sockets for sling attachment
  • Single bolt installation of adapter



Additional information

Weight5.5 lbs
Dimensions26 × 4 × 11 in
