Elf Owl Chassis Superlite

Thanks to the compact design of the Superlite action, we were able to integrate it into our streamlined Elf Owl platform, a long-time favorite among enthusiasts. This chassis comes standard with a lightweight version of the Elf Owl handguard, but it is compatible with all Elf Owl handguards, night vision hoods, and our full range of stock adapters.

Magazine Compatibility : This chassis requires an all metal AICS pattern magazine, one is included with the chassis. Magazine fitment outside of the ones offered here may vary.

Features

• Compatible with Howa Superlite Action
• Modular design enables easy interchangeability of stock adapters and handguards
• Flared magwell designed for AICS-style magazines (metal magazines only; one included)
• Ambidextrous mag release
• M-Lok Compatible Handguard
• Integrated ARCA dovetail
• Ambidextrous mag release
• Compatible with AR-15 grips (without beavertail)
• Core machined from single piece of 6061 Aluminum
• Single-bolt design allows for easy interchangeability of stock adapters
• Comes standard with Carbon Grey Cerakote Elite

 Stocks and Adapters

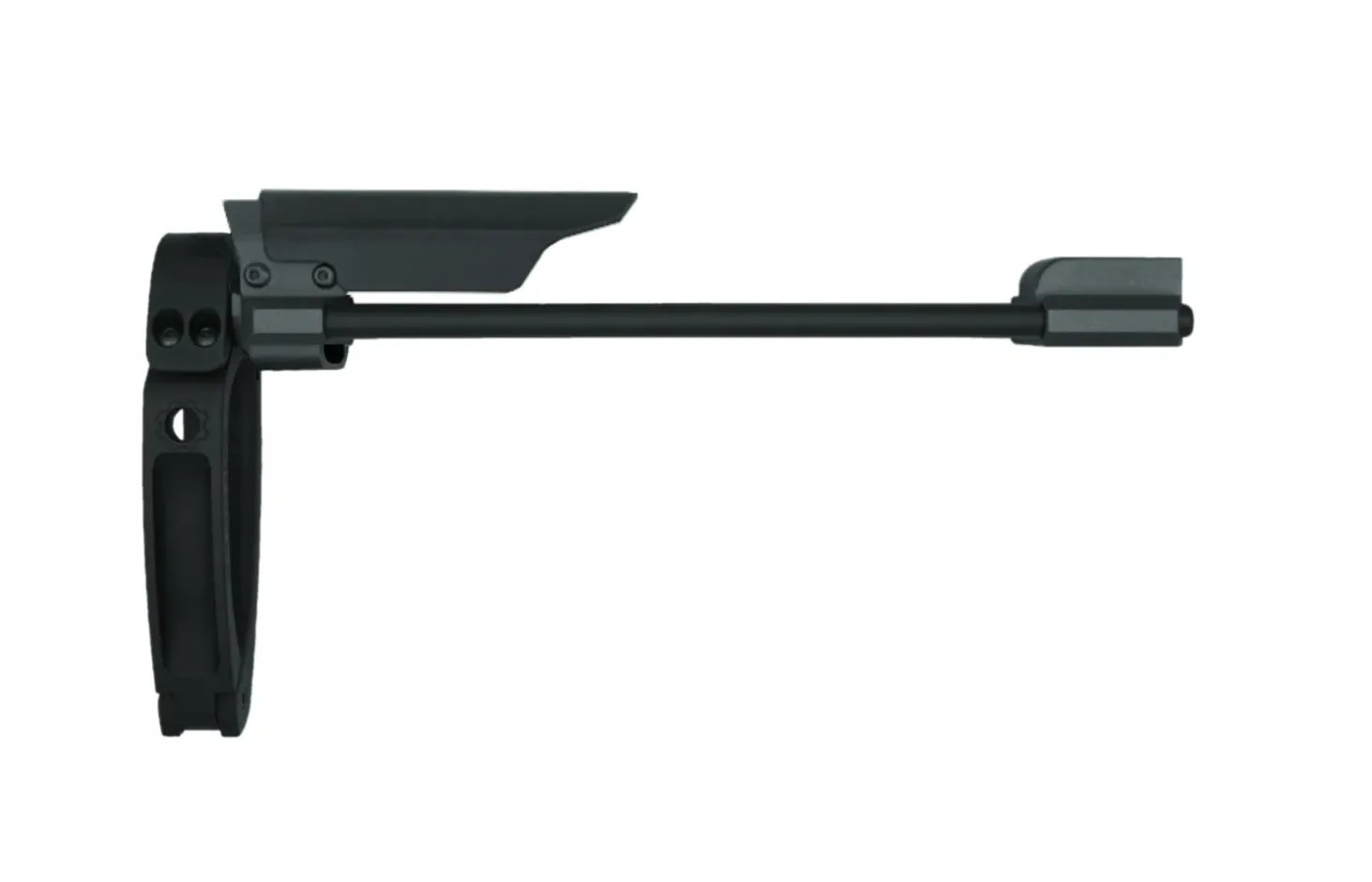

Telescoping Stock (Tel Stock 2.0): Our most popular option, allowing your gun to collapse to a compact and narrow package.

• LOP 13.50″ Fully Extended, with two shorter positions at 12.50″ and 11.50″ (Rods with extra, shorter positions available by request)
• Adjustable Cheek weld height
• Pic Rail interface for optional Mini Bag Rider, or for Monopod
• Standard Rubber buttpad
• Integrated QD sockets

1913 Pic rail Adapter: Adds a 1913 interface to the back of the chassis to allow for the use of third party stocks and braces that mount via 1913 pic rail.

• Integrated QD sockets

AR-15 Style Stock Adapter: Rather than adapting to a buffer tube, this adapter takes place of a Mil-spec carbine buffer tube, allowing for a sleeker, more compact transition from the stock to the chassis

• Integrated QD sockets
• Compatibility with this adapter may be limited, please contact us with any questions regarding particular stock fitment
• No Buffer tube necessary

Choosing your Handguard length

The following measurements indicate the minimum barrel length required for the shoulder of the muzzle threads to be flush with, or extend beyond, the end of the handguard. These measurements are based on 5/8″ muzzle threads. These measurements are intended as a guide. Depending on your specific barrel and/or muzzle device, you may still need to add a shim to prevent your suppressor from making contact with the rail. Please contact us with any questions.

To determine the distance between the end of the handguard and the shoulder of a specific barrel length, please refer to the diagram below.

Weight Specs:

Chassis Core: 0.68lbs

Tel Stock 2.0: 1.5lbs

1913 adapter: 0.15lbs

The following is the combined weight of a Telescoping stock equipped chassis and each rail size. (Grip, magazine, and optic rails not included)

• 5.5″ Rail: 2.55lbs
• 7.5″ Rail : 2.65lbs
• 9.5″ Rail : 2.75lbs
• 14″ Rail : 2.95lbs

The following is the combined weight of a 1913 adapter equipped chassis and each rail size. (Grip, magazine, and optic rails not included)

• 5.5″ Rail: 1.10lbs
• 7.5″ Rail : 1.18lbs
• 9.5″ Rail : 1.28lbs
• 14″ Rail : 1.5lbs
